LD-1

LD-1 Air Container
IATA ULD Code AKC Contoured Container
Also Known As AVC, AVD, AVK, AVJ and forkable AVY
Suitable for 747, 767, 777, 787, and MD-11
Door Openings 147cm width x 155cm height
Max. Gross Weight 1,588kg
Tare 70 to 170kg
AS1825 Volume 5m³

LD-2

LD-2 Air Container
IATA ULD Code DPE Contoured Container
Also Known As APA, DPA, and forkable DPN
Suitable for 747, 767, 777, e 787
Door Openings 112cm width x 152cm height
Max. Gross Weight 1,225kg
Tare 92kg
AS1825 Volume 3.5m³

LD-3

LD-3 Air Container
IATA ULD Code AKE Contoured Container
Also Known As AKE, AVA, AVB, AVC, AVK, DVA, DVE, DVP, XKS, XKG, forkable AKN, AVN, DKN, DVN, and XKN
Suitable for 747, 767, 777, 787, DC-10, and MD-11
Door Openings 147cm width x 155cm height
Max. Gross Weight 1,588kg
Tare 82kg
AS1825 Volume 4.5m³

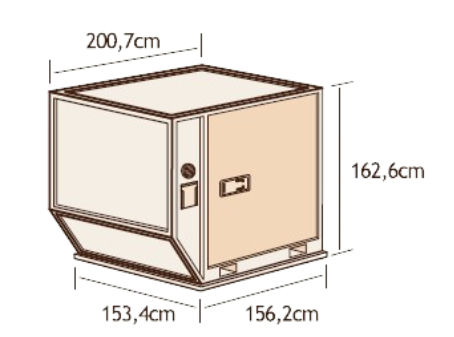

LD-3 REEFER

LD-3 Reefer Air Container
IATA ULD Code RKN Contoured Container
Also Known As RVN
Suitable for 747, 767, 777, 787, DC-10, and MD-11
Door Openings 137cm width x 140cm height
Max. Gross Weight 1,588kg
Tare 210kg
AS1825 Volume 4.5m³

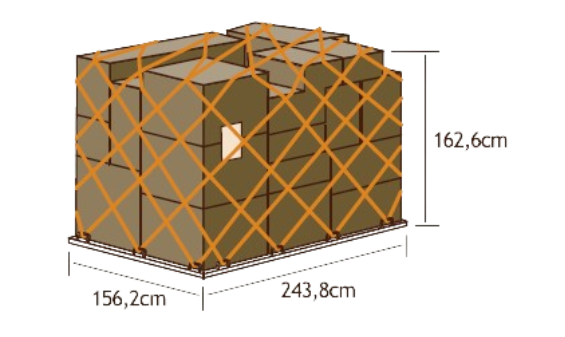

HALF PALLET PNA

Half Pallet PNA
IATA ULD Code PNA 767 Half Pallet With Net
Also Known As PQP, FQF, and PPC
Suitable for 767 e 787
Max. Gross Weight 2.449kg
Tare 83kg
AS1825 Volume 5.5m³

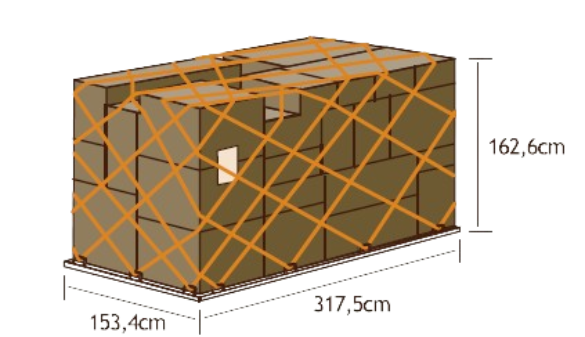

HALF PALLET PLA

Half Pallet PLA
IATA ULD Code PLA Half Pallet With Net
Also Known As PLB, FLA, P9A, P9B, P9P, P9R, and P9S
Suitable for 747, 777, 787, 707F, 727F, and 737F
Max. Gross Weight 3.175kg
Tare 91kg
AS1825 Volume 7.1m³

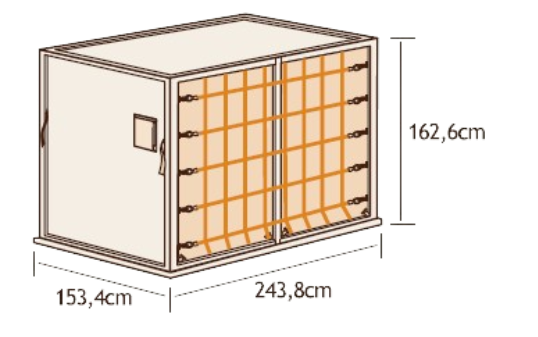

LD-4

LD-4 Air Container
IATA ULD Code ALP Rectangular Container
Also Known As ALD, AWD, AWZ, DLP, and forkable ALB, ALC, AWB, and AWC
Suitable for 767, 777 e 787
Door Openings 234cm width x 155cm height
Max. Gross Weight 2.449kg
Tare 120kg
AS1825 Volume 5.7m³

LD-6

LD-6 Air Container
IATA ULD Code ALF Contoured Container
Also Known As AWA, AWF, and forkable AWC
Suitable for 747, 777, 787, DC-10, and MD-11
Door Openings 305cm width x 152cm height
Max. Gross Weight 3.175kg
Tare 230kg
AS1825 Volume 9.1m³

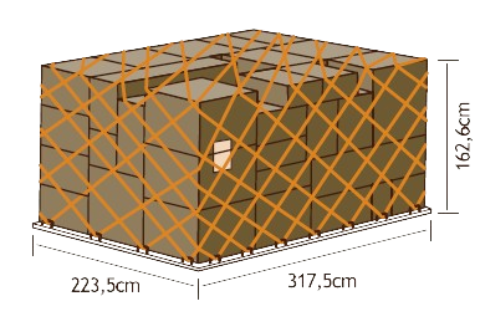

LD-7 FLAT PALLET

LD-7 Flat Pallet
IATA ULD Code P1P Flat Pallet With Net
Also Known As PAA, PAG, PAJ, PAP, PAX, P1A, P1C, P1D, and P1G
Suitable for 707F, 727F, 737F, 757F, DC8F, and DC9F
Max. Gross Weight 4.626kg
Tare 105kg
AS1825 Volume 10.5m³

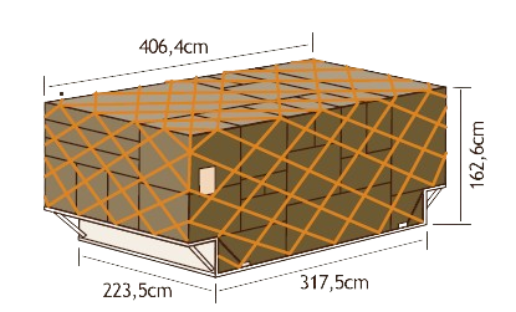

LD-7 FOLDING WINGS

LD-7 Folding Wings
IATA ULD Code PAD P1P Pallet With Folding Wings and Net
Also Known As PAX and P1X
Suitable for 747, 777, 787, DC-10, and MD-11
Max. Gross Weight 5.000kg
Tare 152kg
AS1825 Volume 14.0m³

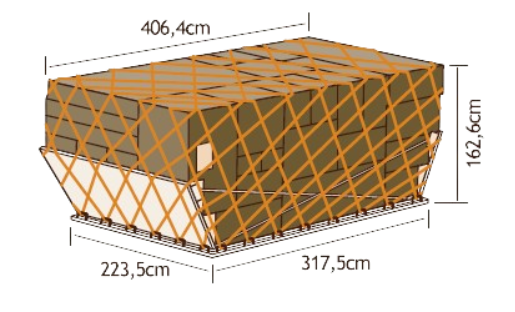

LD-7 FIXED ANGLE

LD-7 Fixed Angle
IATA ULD Code XAW P1P Pallet With Fixed-Angle Wings and Net
Suitable for 747, 777, 787, DC-10, and MD-11
Max. Gross Weight 5.000kg
Tare 170kg
AS1825 Volume 14.0m³

LD-8

LD-8 Air Container
IATA ULD Code DQF
Also Known As ALE, ALN, DLE, DLF, DQP, and MQP
Suitable for 767 e 787
Door Openings 234cm width x 157cm height
Max. Gross Weight 2.450kg
Tare 127kg
AS1825 Volume 7.1m³

LD-9

LD-9 Air Container
IATA ULD Code AAP Enclosed Pallet on P1P Base
Suitable for 747, 767, 777, 787, DC-10, and MD-11
Door Openings 300cm width x 147cm height
Max. Gross Weight 4.624kg
Tare 215kg (canvas door); 270kg (solid door)
AS1825 Volume 10.8m³

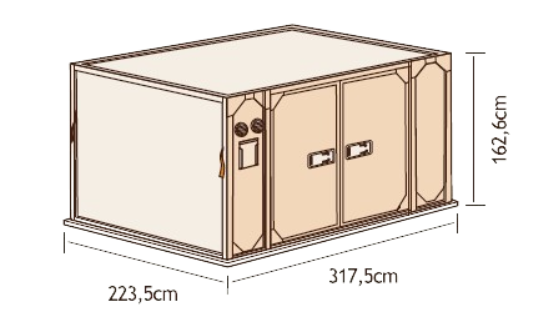

LD-9 REEFER

LD-9 Reefer Air Container
IATA ULD Code RAP Cool Container on P1P Base
Suitable for 747, 767, 777, 787, DC-10, and MD-11
Door Openings 216cm width x 147cm height
Max. Gross Weight 4.626kg
Tare 400kg
AS1825 Volume 9.6m³

LD-11

LD-11 Air Container
IATA ULD Code ALP Rectangular Container
Also Known As ALD, AW2, AWB, AWD, AWZ, DLP, DWB, and MWB. Refrigerated version: RWB, RWD, and RWZ.
Suitable for 747, 777, 787, DC-10, and MD-11
Door Openings 305cm width x 155cm height
Max. Gross Weight 3.176kg
Tare 185kg
AS1825 Volume 7.4m³

LD-26

LD-26 Air Container
IATA ULD Code AAF Contoured Container on P1P Base
Suitable for 747, 777, 787, DC-10, and MD-11
Door Openings 305cm width x 152cm height
Max. Gross Weight 6.033kg
Tare 250kg
AS1825 Volume 13.3m³

LD-29

LD-29 Air Container
IATA ULD Code AAU Contoured Container on P1P Base
Suitable for 747
Door Openings 300cm width x 152cm height
Max. Gross Weight 6.033kg
Tare 265kg
AS1825 Volume 14.4m³

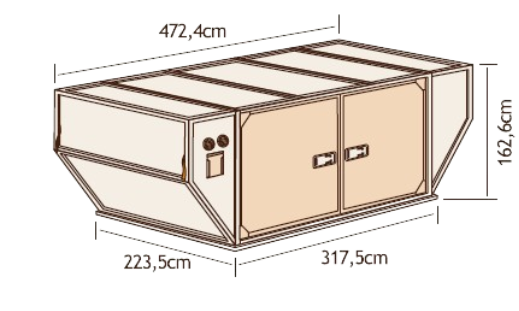

LD-29 REEFER

LD-29 Reefer Air Container
IATA ULD Code RAU Contoured Cool Container on P1P Base
Suitable for 747
Door Openings 300cm width x 152cm height
Max. Gross Weight 6.033kg
Tare 450kg
AS1825 Volume 11.1m³

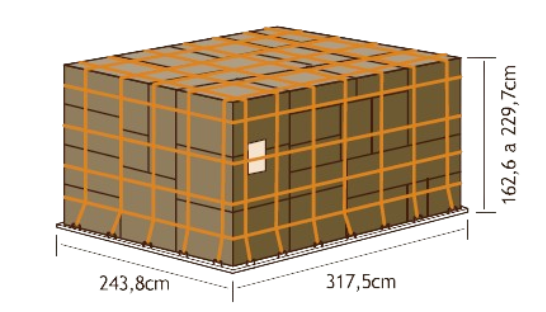

P6P PALLET

P6P Pallet
IATA ULD Code P6P 10ft Flat Pallet With Net
Suitable for 747, 767, 777, 787, DC-10, and MD-11
Tare 185kg
AS1825 Volume Altura 162.6cm > 11.5m³
Altura 243.8cm > 17.0m³
Altura 299.7cm > 21.2m³

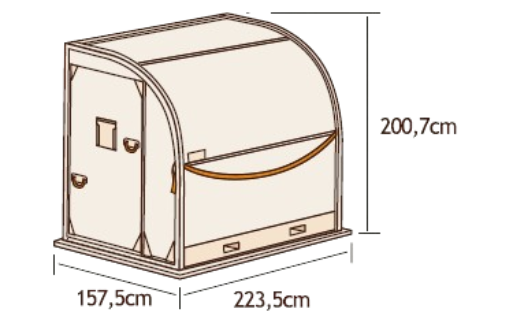

DEMI

Demi Container
IATA ULD Code AYY Contoured Container on Half Pallet Base
Suitable for 727F, 737F, 757F, 747F, 767F, 777F, DC-10F, and MD-11F
Max. Gross Weight 3.016kg
Tare 80kg
AS1825 Volume 5.8m³
